:: IDS-1100
Dermatoscope,
reinvented by optical experts
IDS-1100, the dermatoscope with excellent optics and bright illumination
Dermoscopy requires a high-quality magnifying lens and likewise high quality light sources that can help with examining skin structures and patterns.
- Excellent optical quality
- 25mm lens with 22mm large field of view
- Very optimized light illumination (32 LEDs)
IDS-1100 series guarantee you the best performace during your dermoscopy examinations.
IDS-1100, the Hybrid dermatoscope with cross and parallel polarization light.
Unlike non-polarized dermatoscopes, which always require contact with the skin and the use of an interface medium(oil immersion), IDS-1100 uses cross-polarized light to reduce surface light scatter.It means, you can examine multiple lesions with IDS-1100 quickly without the need to coat the patient in copious amounts of oil or interface fluid. On the other hand, if you want to use oil immersion during your examination, you also can use it with IDS-1100. IDS-1100 can produce images by both oil immersion and cross-polarization.
- Polarized light contact dermoscopy (PCD)
- Polarized light non-contact dermoscopy (PNCD)
- Non-polarized light contact dermoscopy (NPD)
- Non-polarized light non-contact dermoscopy
The capabilities of NPD, PCD and PNCD are not equivalent but complementary. Therefore hybrid dermatoscope IDS-1100 with all the capabilities will be a valuable tool in your diagnosis of pigmented and non-pigmented skin lesions.
Improve your confidence in your diagnosis
Remarkable Features of IDS-1100
- 10 x Magnification
- 22 mm wide field of view

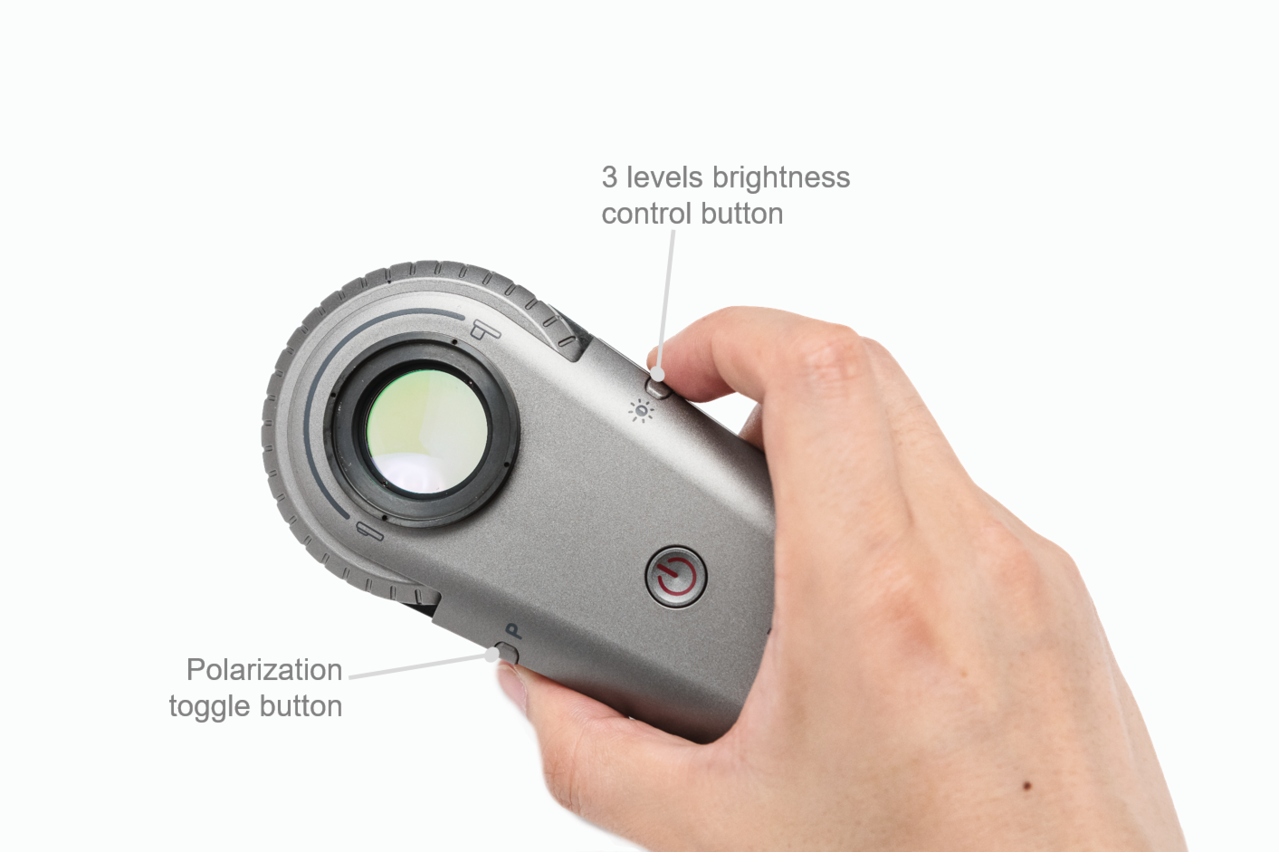

- 3 levels brightness
- Cross and parallel polarization light source

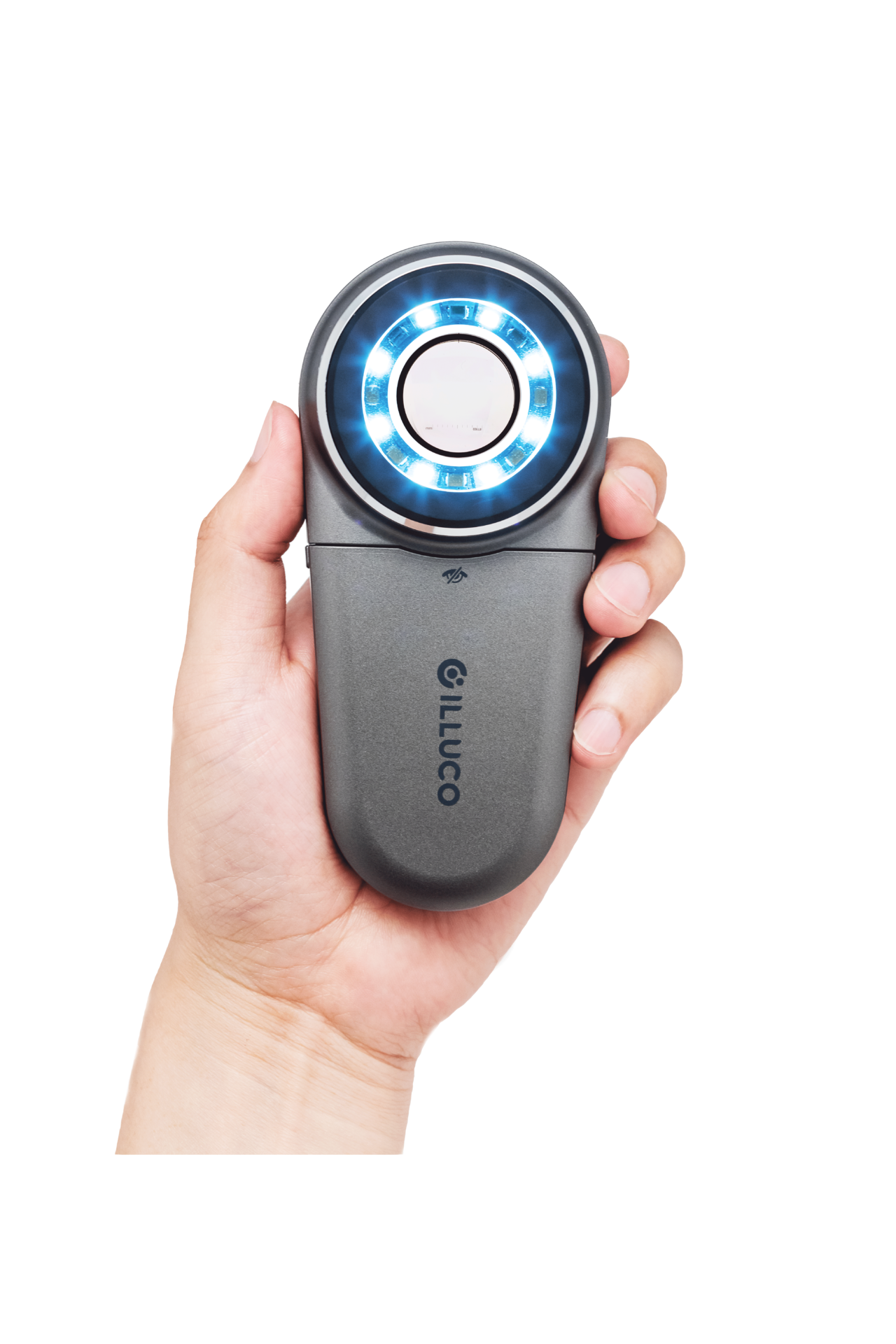

- Bright light with 32 LEDs
- Small Contact plate for examination of narrow and hard reach areas (6mm, 8mm)
- Smartphone and camera compatibility
- Protect glass (Contact plate) with easy detachable magnetic mechanism.
- Automatic shut down after 5 min. idle run

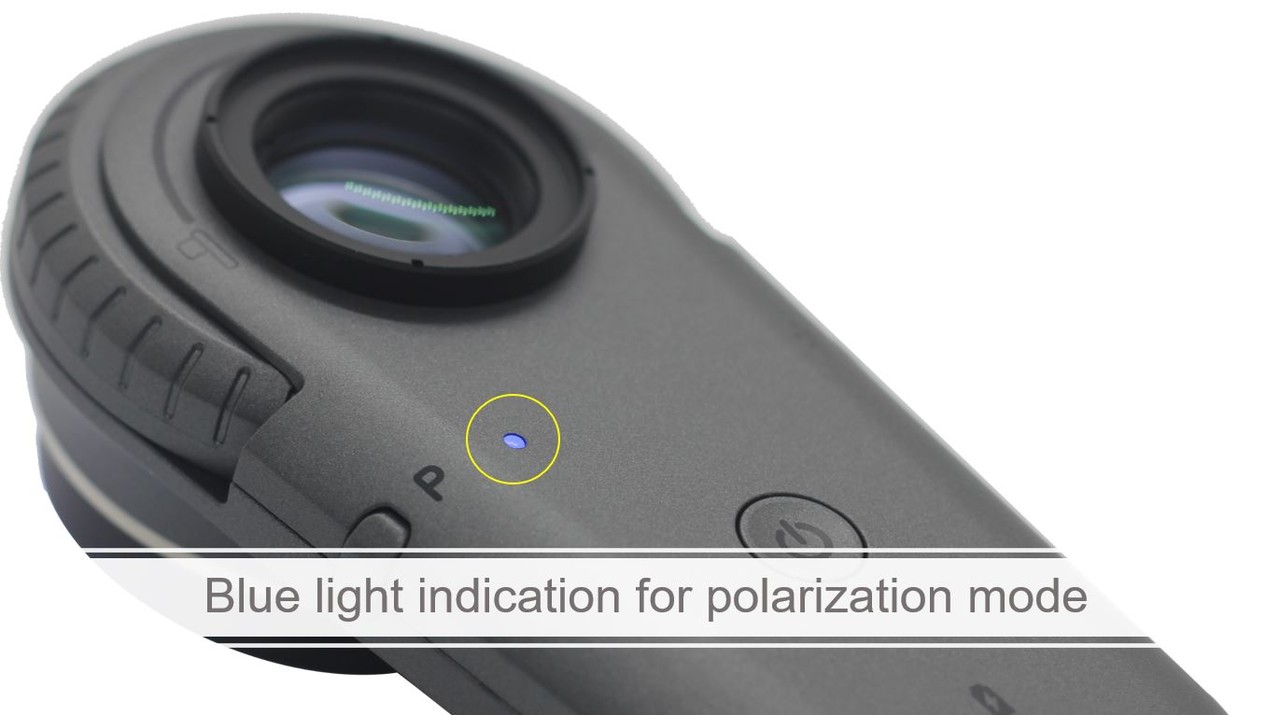

Blue Light indication for Polarization mode
IDS-1100 has a new indicator that lights up when polarization mode is active. This indicator will be very useful to dermoscopy beginners and help to distinguish polarized and non-polarized images.

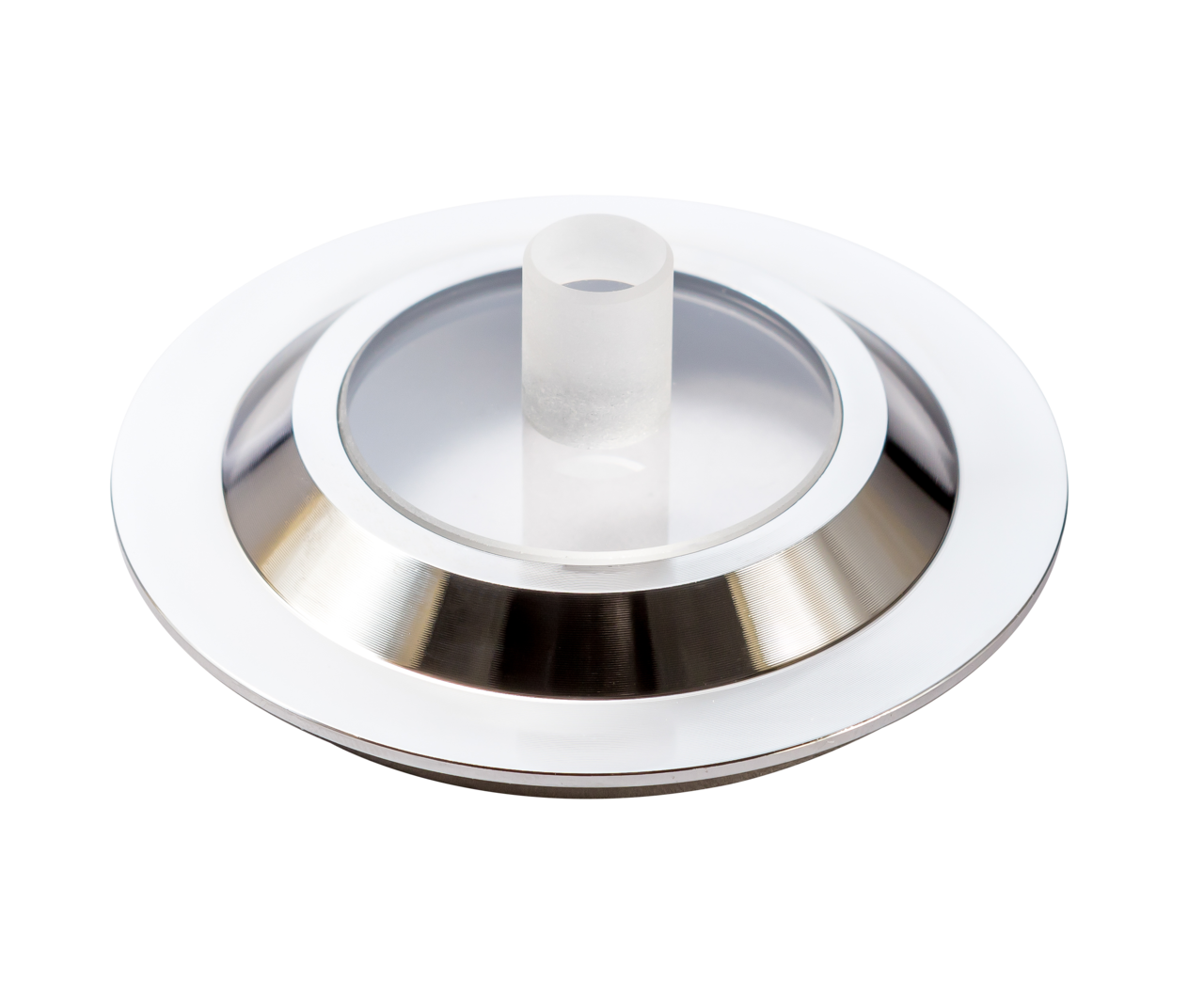

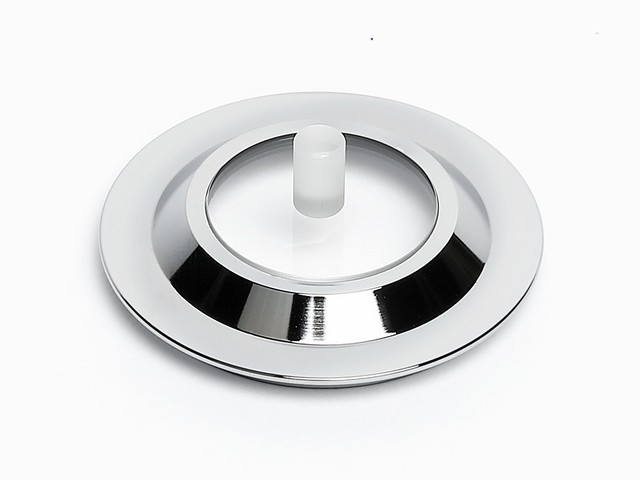

Small Contact Plate
Use small contact plate for narrow and hard reach inward areas. Small contact plates are useful for
examination between fingers, in ears or noses, on folded or angled areas of skin.
Small contact plates for IDS-1100 are available with 6mm and 8mm.
Dermatoscope Applications
- Diagnosis of malignant melanoma skin cancers
- A close up examination of many skin diseases including folliculitis, xeroderma pigmentosum, lentigo maligna, dermatofibroma, scar tissue, vascular supply and a variety of nevus
- Studying normal skin
- Examining diseased skin
- Noninvasive monitoring of skin during a treatment
- Use as a diagnostic tool in a dermatology clinic
- Subsurface examination
- Hair research
| Technical Specifications | |
|---|---|
| Polarization | Cross Polarization & Parallel Polarization |
| Lens diameter (Field of view) | 25mm (22 mm) |
| Lens coating | Special BBAR coating |
| Magnification | 10 x |
| Brightness Control | 3 levels |
| Adapter for Smartphone | Applicable |
| LED | 32 ea |
| Battery | Rechargeable Lithium ion 1150mAh / 3.7v |
| Charging time | 3 hours |
| Continuous duty time | 2 hours |
| Charging terminal | Micro USB 5 pin |
| New dimensions / weight | 138 x 65 x 33 (mm) / 190g |
| Package dimensions / weight | 190 x 190 x 85 (mm) / 520g |
